The Physics of Flight

Giovanni Alfonso Borelli

Wherein are set forth the reasons for the immense powerof the wings.

Such excessive power of the pectoral muscles of Birds seems to arise, firstly, from their large size and from the more compact and stronger organic structure of the fibres of the pectoral muscles; for these fibres are thicker and closer, forming a dense and compact fleshy structure, whereas the muscles of the legs are formed of meagre, spare flesh. By reason hereof the former can be extended more forcefully and vehemently, so that the former are able to exert more power than the latter.

Secondly, the action of the wings is increased by the decrease in resistance, for the body of a Bird is disproportionately lighter than that of man or of any quadruped; that is, the weight of a Bird is in smaller proportion to the weight of the latter animals than its mass to theirs. This is evident since the bones of a Bird are porous, hollowed out to extreme thinness like the roots of the feathers, and the shoulder-bones, ribs, and wing-bones are of little substance; the breast and abdomen contain large cavities filled with air; while the feathers and the down are of exceeding lightness. Hence the power of the wings is increased in duplicate ratio: firstly, by the increase in the force of the muscles, and secondly by the decrease of the weight to be supported.

This downward pull is diminished the more as its downward movement is retarded by the spread of the wings and of the tail; hence the force of the wings can the more readily effect the leaps through the air, as the resistance of the downward pull of the Bird itself is diminished.

Thirdly, in leaping from the earth the projectile momentum is immediately extinguished so soon as the feet come into contact with the earth again; whence it follows that the momentum must forthwith be renewed. On the contrary, when a Bird is flying through the air, the projectile force is not extinguished by the fluid air, wherefore it assists the succeeding leaps which are made by the beating of the wings.

Fourthly, in effecting separate leaps from the earth, the soles of the feet come into contact with the ground not without experiencing hurt and painful injury, whence arise fatigue and weakness. But no such hurt results from leaping through the air; wherefore, since the motive force is not weakened to the same extent, longer, more powerful, and more lasting leaps may be made through the air. The various causes set forth above render the process abundantly clear.

In what manner an oblique transverse force may propel straightly a body unaffected by the motion.

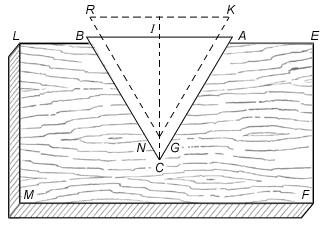

It is taught by the science of mechanics that the action of the wedge ABC, through which two parts EFG and LMN of the same body must be separated from one another, amounts to the forcing of the two resisting bodies DE and HM over the inclined surfaces CA and CB of the wedge, along which they seek to ascend when the wedge is driven in a direction from I to C. And the same transverse motion over the inclined faces CA and CB must take place when the two adjacent bodies DF and HM are forced towards each other; for in this case the smooth wedge ABC seeks to escape in the opposite direction and to recoil from C to I, being expelled through the pressure of the collateral bodies, in the same manner as the smooth pips of a fruit may be projected to a long distance by being compressed between one’s fingers. And this propulsion is made with the same force and momentum as that wherewith the bodies DF and HM compress the inclined faces CA and CB: the expelling force having the same proportion to their absolute force as the heights AI, BI of the planes to the lengths AC, BC of their inclination.

If a Bird suspended in the air strike with its outspread wings the undisturbed air, with a motion perpendicular to the horizon, it will fly with a transverse movement parallel to the horizon.

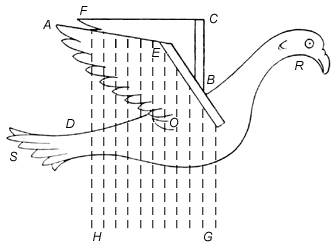

Let the Bird RS be suspended in the air with its wings BEA and BCF expanded and its belly downwards, and the under surfaces of the wings BEA and BCF strike against the wind perpendicularly to the horizon with such force as to prevent the bird from falling, then I hold that it will be impelled horizontally from S towards R. And this happens because the two osseous rods (virgae) BC and BE by muscular strength and on account of their hardness are able to resist the pressure of the wind, and, moreover, to retain their shape, but the afterparts of any kind of wing yield to the air pressure, as the flexible feathers are able to move about the wing bones (manubria) or their boney axes BC and BE; and so it follows that the ends A and F of the feathers close in towards one another, by which means the wings assume the form of a wedge with its apex towards AF. But as the surfaces of the wedge are compressed on all sides by the ascending air, the wedge is of necessity squeezed and driven towards its base CBE. And as the said wedge formed by the wings cannot move forward without taking with it, since it is attached thereto, the body of the Bird RS, which is swimming in the air and can therefore be moved freely from its position, for this reason it is able to give room to the incoming air in the place of the air driven out; and therefore the bird moves with a horizontal motion towards R.

Let us now take the case of undisturbed opposing air which is struck by the flexible portions of the wings with a movement perpendicular to the horizon. Since the sails and flexible portions of the wings assume the shape of a wedge, with the apex towards the tail, when acted upon by the force and compression of the air, whether the wings strike the quiescent air beneath, or whether the air rushes up against the outstretched wings with their rigid wing-bones; in both cases the flexible feathers of each wing yield to the pressure and close in towards one another. Therefore, of necessity, as will be presently shown, the bird will be moved forwards towards R.

Wherein is explained the way in which the horizontal flight of Birds is effected.

To have brought about flight, it is evident that Nature impelled birds upward and held them suspended in the air, and afterwards they were enabled by horizontal movements to be carried about. The first step could not have been accomplished except by successive leaps; next the heavy bird was carried up and its descent prevented by the beating of its wings, and then, as the downward pull of its weight is perpendicular to the horizon, beats with the flat face of its wings would be made by striking the air in the same perpendicular direction; and in this fashion has Nature brought about the suspension of the Birds in the air.

Concerning the second and transverse motion of Birds, some people do blunder strangely, for they think that it ought to be done as in Ships, which, by the exertion of a horizontal force towards the stern, through the means of oars, the while floating on the quiet and therefore resisting water beneath, recoil at the contrary motion, and so are moved forward. In the same way they affirm that the wings are flapped with a horizontal movement towards the tail and so strike against the undisturbed air, the resistance of which occasions, by the reflex action, their forward motion.

But this is repellent to the evidence of the senses and of reason, for we never see the larger Birds, such as Swans, Geese, and the like, while flying, to flap their wings toward the tail with a horizontal motion, but always to incline them downwards, describing circles set perpendicularly to the horizon. Moreover, in Ships, the horizontal motion of the oars can be easily accomplished and a perpendicular stroke upon the water would be useless and unnecessary, as there is no need to prevent their descent when they are sustained by the weight and density of the water. But in the case of Birds, it would be foolish to make such a horizontal motion, which would rather hinder flight as the speedy downfall of the heavy Bird would result from it; wherefore, the Bird must be sustained by continual vibrations of the wings perpendicularly to the horizon.

Wherefore Nature was compelled to use, with remarkable shrewdness, a movement which both sustained the Bird and propelled it horizontally. . . .

How Birds, without flapping their wings, can sometimes rise in the air for a short time not only horizontally, but also obliquely upward.

It is clear from what has been said that the projectile force is communicated to a Bird’s body by the flapping of the wings in the same way as motion is given to a Ship by the strokes of the oars, which motion is of a constant nature.

Suppose, however, that the action of the oars stops, nevertheless the Ship proceeds upon its way until its movement is arrested by external forces.

Therefore both Bird and Ship from the motion imparted to them have the same properties as an arrow and other projectiles; and just as in a Ship in motion, if its axis is deflected from a straight course by the strength of the helm, then this same motion comes into play on the altered course, and the voyage is continued; so also in the Bird A, moving horizontally along the straight line ABC, as often as its axis is directed upward through B D by the force of its tail acting as a helm, of necessity its impetus follows an upward movement through the parabolical curve BEF, but it is true that such ascent stops suddenly, the natural gravity of a Bird producing this effect and tending to bring it down. While the force of gravity is less than the velocity, the Bird rises upwards through BE, and when at F the forces equalise, the Bird is seen to float at that point for a little while, moving with expanded wings, almost in the same plane parallel to the horizon; for a bird cannot remain entirely motionless at the same point in the air, therefore upward flight cannot be made exactly perpendicularly to the horizon, but always obliquely through the line of a parabola, as projectiles move.

Therefore, after this rise is made, either the bird continues in a horizontal course for a short time because the equalisation of the forces soon ceases, or as the projectile force is spent it descends at a constantly increasing speed until brought up by external forces. Hence the necessity arises for renewing the impulse through the air by fresh strokes of the wings. . . .

It is impossible that men should be able to fly craftily by their own strength.

Three principal points ought to be considered in flying: firstly, the motive power by which the body of the Animal may be sustained through the air; secondly, the suitable instruments, which are wings; thirdly, the resistance of the Animal’s heavy body.

The degree of motive power is known by the strength and quantity of the muscles, which are designed to bend the arms or to flap the wings. And because the motive force in Birds’ wings is apparently ten-thousand times greater than the resistance of their weight, and as Nature has endowed Birds with so great an excess of motive power, the Bird largely increases the strength of its pectoral muscles and skilfully decreases the weight of its body, as we have hinted above.

When, therefore, it is asked whether men may be able to fly by their own strength, it must be seen whether the motive power of the pectoral muscles (the strength of which is indicated and measured by their size), is proportionately great, as it is evident that it must exceed the resistance of the weight of the whole human body ten-thousand times, together with the weight of enormous wings which should be attached to the arms. And it is clear that the motive power of the pectoral muscles in men is much less than is necessary for flight, for in Birds the bulk and weight of the muscles for flapping the wings are not less than a sixth part of the entire weight of the body. Therefore, it would be necessary that the pectoral muscles of a man should weigh more than a sixth part of the entire weight of his body; so also the arms, by flapping with the wings attached, should be able to exert a power ten-thousand times greater than the weight of the human body itself. But they are far below such excess, for the aforesaid pectoral muscles do not equal a hundredth part of the entire weight of a man. Wherefore either the strength of the muscles ought to be increased or the weight of the human body must be decreased, so that the same proportion obtains in it as exists in Birds.

Hence it is deduced, that the Icarian invention is entirely mythical because impossible; for it is not possible either to increase a man’s pectoral muscles or to diminish the weight of the human body; and whatever apparatus is used, although it is possible to increase the momentum, the velocity or the power employed can never equal the resistance; and therefore wing flapping by the contraction of muscles cannot give out enough power to carry up the heavy body of a man.

There only remains the diminution of the weight of the human body, not in itself, for this is impossible, its mechanism must remain intact, but especially and respectively to the aerial fluid in the same way as a strip of lead can float on water if a certain amount of cork be attached to it which causes the entire mass of lead and cork to float, being of like weight to the amount of water which it displaces, according to the law of Archimedes. And this device Nature uses in fishes. She places in their bellies a sack full of air by means of which they are able to maintain their equilibrium, so that they can remain in the same place as if they were part of the water itself.

By this same device some have lately persuaded themselves that the weight of the human body is able to be brought into equilibrium with the air, that is to say by the use of a large vessel, either a vacuum or very nearly so, of so great a size that it is possible to sustain a human body in the air together with the vessel.

But we easily perceive this to be a vain hope as it is necessary to construct the vessel of some hard metal such as brass or copper, and squeeze out and take away all the air from its interior, and it must also be of so great a size that when in the air it displaces a quantity of air of the same weight as itself, together with the man fastened to it; wherefore it would have to occupy a space of more than 22,000 cubic feet; moreover, the plates composing the sphere must be reduced to an extraordinary thinness. Furthermore, so thin a vessel of this size could not be constructed, or, if constructed, preserved in-tact, nor could it be exhausted by any pump, much less by mercury, of which so large a quantity is not to be found in the world, nor could be extracted from the earth, and if such a great vacuum were made the thin brass vessel could not resist the strong pressure of the air, which would break or crush it. I pass over the fact that so great a machine of the same weight as the air would not be able to keep itself in exact equilibrium with the air, and therefore would in-continently rise to the highest confines of the air like clouds, or would fall to the ground.

Again, such a large mass could not be moved in flight on account of the resistance of the air; in the same way feathers and soap bubbles can be moved only with difficulty through the air, even when they are blown by a light breeze, just as clouds, poised in the air, are driven by the wind.

At this point we cease to wonder that Nature, who is accustomed everywhere to imitate others’ advantages, makes the swimming of fishes in water so easy and the flying of Birds through the air so difficult, for we see whereas fishes can remain in the midst of water, being of their own accord and without effort held up and poised, and can very easily descend and ascend,and are only moved by the strength of muscles placed transversely and obliquely to the direction of motion; on the other hand, Birds are notable to float in the air but owe their sustentation to the continual exertion of strength and a projectile force, not external, but natural and intrinsic, by contracting their pectoral muscles by which they make a series of bounds through theair; and this requires enormous strength, as they are not going upon feet supported on solid ground, but on wings supported by very fluid and greatly agitated air.
